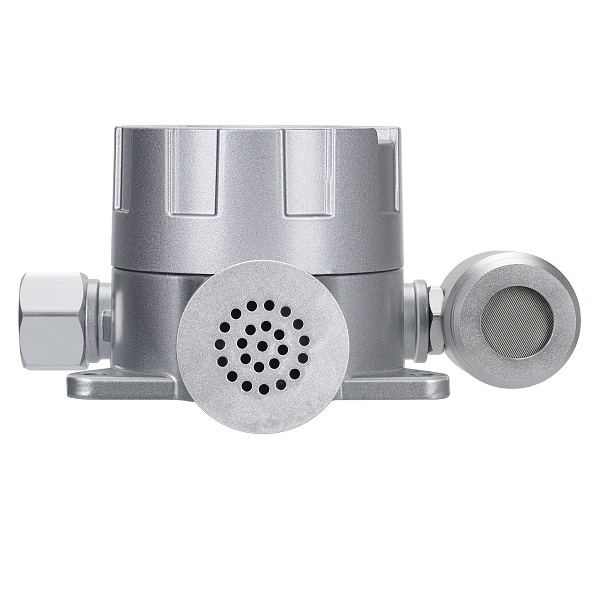

Online Dust detector is suitable for real-time and accurate detection of dust concentration in factory workshops. Overall flameproof (d) structure, fixed installation method. Widely used for workshop dust concentration detection, including pm2.5/pm10.
Sino-Inst Online Dust detector is equipped with standard bus RS485 and 4~20mA standard signal simultaneous output, 1 group of relay switch output, optional frequency output 200-1000Hz, Hart protocol signal, 1~5V output, wireless transmission (10-50 kilometers or unlimited distance). Realize wired or wireless remote real-time monitoring.
Features
- Automatic temperature compensation, zero drift and full-scale drift compensation.
- Automatic protection against high-concentration gas shock and sensor fault self-detection function.
- Circuit protection design greatly reduces the failure rate during installation and use.
- Infrared remote control mode, the detector can be adjusted without opening the cover, which is safe and convenient.
- It can directly drive solenoid valves, fans, alarms and other equipment. It can also drive high-power equipment by driving intermediate relays.
- Receiving equipment: user computer, control alarm, compatible with various secondary meters, data acquisition modules, PLC, DCS systems, etc.
- On-site sound and light alarm, external alarm, remote controller alarm data acquisition alarm, etc.;
- Die-cast aluminum shell + sandblasting oxidation/fluorine nitrogen paint, explosion-proof and corrosion-resistant;
Specifications
| Detection gas | Dust, PM2.5/PM10 |
| Detection range: | 0-1000ug/m3, 6000ug/m3, 0-20mg/m3 (other ranges can be customized) |
| Working voltage: | DC5V±1%/DC24±1% |
| Detection accuracy: | ≤±3% |
| Repeatability: | ≤±2% |
| Working temperature: | -30~70℃ |
| Storage temperature: | -40~70℃ |
| Working current: | ≤50mA |
| Installation method: | Fixed, wall-mounted, diffused, etc. |
| Electrical interface: | 3/4″NPT internal thread, 1/2″NPT internal thread, supports 2 types of electrical connection methods |
| Output signal: | ① 4-20mA signal: standard 16-bit precision 4-20mA output chip, transmission distance 1Km ② RS485 signal: using standard MODBUS RTU protocol, transmission distance 2Km ③ Voltage signal: 0-5V, 0-10V output, can be set by yourself ④ Pulse signal: also known as frequency signal, frequency range is adjustable (optional) ⑤ Switching signal: standard 2 sets of relays, optional third set of relays, relay passive contacts, capacity 220VAC 3A/24VDC 3A. |
| Detection method: | Laser scattering |
| Response time: | ≤10 seconds (T90) |
| Working humidity: | 0-100%RH, no condensation |
| Long-term drift | ≤±3% (F.S/year) |
| Warm-up time | 10s |
| Working air pressure | 80KPa~120KPa |
| Shell material | Die-cast aluminum + sandblasting oxidation/fluorocarbon paint, explosion-proof and corrosion-proof |
| Explosion-proof mark: | ExdII CT6 (flameproof type) |
| Dimensions and weight: | 183×143×107mm(L×W×H)1.5Kg (net weight of instrument) |
| Alarm method: | On-site sound and light alarm, external alarm, remote controller alarm, computer data acquisition software alarm, etc. |
| Alarm setting: | Standard configuration two-level alarm, optional three-level alarm; alarm mode can be set: conventional high and low alarm, interval control alarm |
Online Dust Detector Working Principle
Our online dust detector uses the principle of laser scattering.
Laser scattering method: measures the degree of scattering of light by particles in the air.
When light passes through air containing particles, the particles scatter the light. The detector calculates the dust concentration by measuring the intensity of the scattered light.
Online Dust Detectors can be placed directly in environments with high dust concentrations to detect dust concentrations in the environment in real time. You can set corresponding high and low alarm values. Detect the dust content in the environment, support linkage with fans and exhaust fans, reduce dust concentration in the environment in real time, and protect personnel safety in production.
Sino-Inst’s Online Dust Detectors are suitable for real-time and accurate detection of dust concentration and leakage in various environments. If you need dust monitoring, please feel free to contact our sales engineers!
