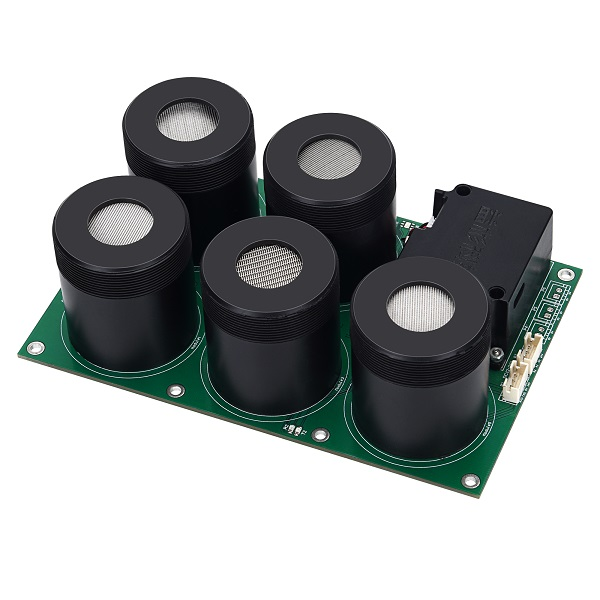

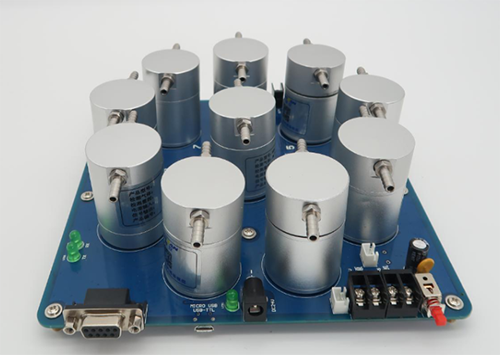

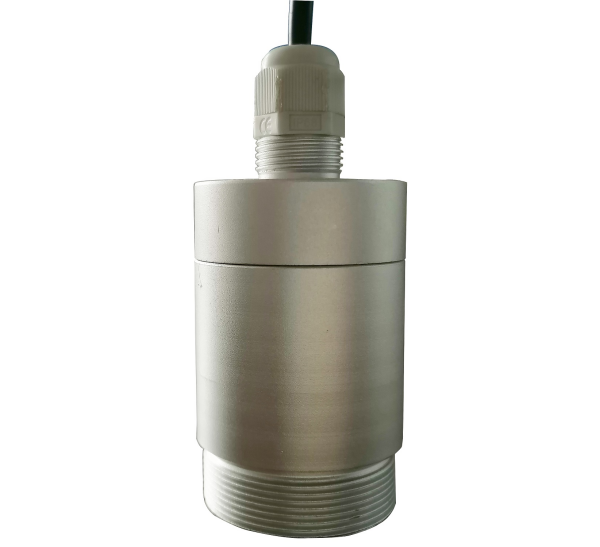

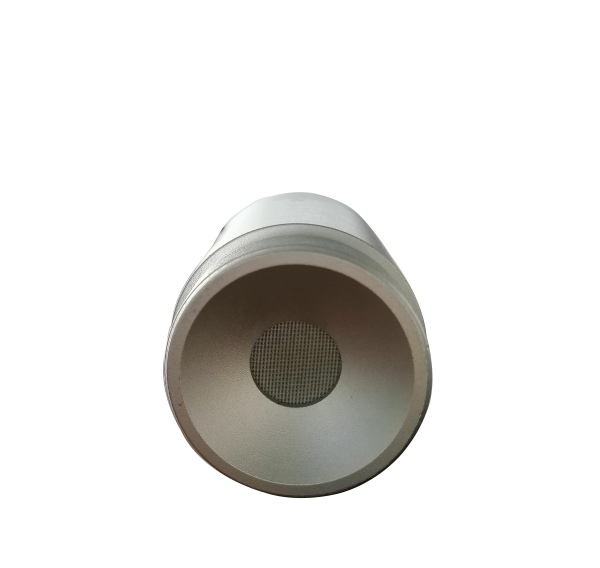

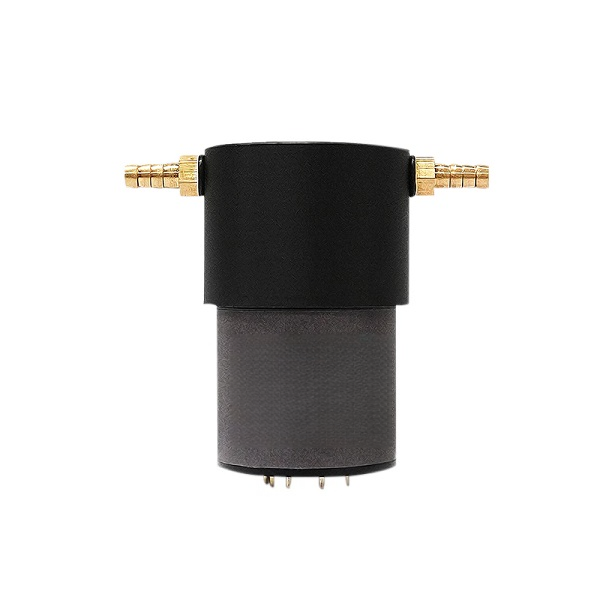

800 Series Gas Sensor Module

Features

Specifications

Working voltage	DC24V±10%	Baud rate	9600
Measurement gas	Sulfur hexafluoride, methane, nitrogen dioxide, carbon dioxide, combustible gas and other gases; Volatile organic compounds.	Detection principle	Catalytic combustion, electrochemistry, infrared NDIR, thermal conductivity, PID, etc.
Sampling accuracy	±2%F.S	Response time (T90)	<30S
Repeatability	±2%F.S	Working humidity	0-100%RH
Working temperature	-30 ～ 70℃	Long-term drift	≤±2% (F.S/year)
Storage temperature	-40 ～ 70℃	Warm-up time	30S
Working current	≤100mA	Working air pressure	80KPa-120KPa
Installation method	6-pin plug-in type	Warranty period	1 year
Output interface	6PIN	Casing material	ABS/aluminum alloy
Service life	3~5 years	Dimensions (excluding pins)	Width 37.81 * Height 46.6
Measurement range	See the selection table for details
Output signal	RS485/4-20mA (standard), customized 0.4-2V, 0-5v, 0-10v, TTL

Common Gas Measurement Range

Detection gas	Chemical identification	Detection range	Resolution	Technical principle	Service life
Combustible gas	EX	0-100%LEL	0.1%LEL	Catalytic combustion	3 years
High temperature flammable (250℃)	EX	0-100%LEL	0.1%LEL	Catalytic combustion	3 years
Methane	CH4	0-100%LEL	0.1%LEL	Infrared	5 years and above
Formaldehyde	HCHO	0-10PPM	0.01PPM	Electrochemistry	3 years
Methanol	CH40	0-100%LEL	0.1%LEL	Catalytic combustion	3 years
Hydrogen	H2	0-100%LEL	0.1%LEL	Catalytic combustion	3 years
Hydrogen	H2	0-1000PPM	1PPM	Electrochemistry	3 years
Acetylene	C2H2	0-100%LEL	0.1%LEL	Catalytic combustion	3 years
Ethylene	C2H4	0-100PPM	0.1PPM	Electrochemistry	3 years
Carbon monoxide	Co	0-1000PPM	1PPM	Electrochemistry	3 years
Hydrogen sulfide	H2S	0-100PPM	0.1PPM	Electrochemistry	3 years
Oxygen	02	0-30%VOL	0.1%70L	Electrochemistry	3 years
Ammonia	NH3	0-100PPM	0.1PPM	Electrochemistry	3 years
Chlorine	CL2	0-10PPM	0.01PPM	Electrochemistry	3 years
Ozone	03	0-5PPM	0.001PPM	Electrochemistry	3 years
Sulfur dioxide	S02	0-20PPM	0.01PPM	Electrochemistry	3 years
Nitrogen monoxide	NO	0-100PPM	0.1PPM	Electrochemistry	3 years
Nitrogen dioxide	NO2	0-20PPM	0.01PPM	Electrochemistry	3 years
Nitrogen oxides	NOX	0-20PPM	0.01PPM	Electrochemistry	3 years
Carbon dioxide	CO2	0-5000PPM	1PPM	Electrochemistry	3 years
Sulfur trioxide	SO3	0-20PPM	0.01PPM	Electrochemistry	3 years
Boron trifluoride	BF3	0-10PPM	0.01PPM	Infrared	3 years
Chlorine dioxide	CL02	0-100PPM	0.1PPM	Electrochemistry	3 years
Ethylene oxide	ETO	0-100PPM	0.1PPM	Electrochemistry	3 years
Hydrogen peroxide	H202	0-100PPM	0.1PPM	Electrochemistry	3 years
Volatile gas	VOC	0-100PPM	0.01PPM	Electrochemistry	5 years and above
Toluene	C6H6	0-20PPM	0.001PPM	PID	3 years
Laughing gas	N20	0-1000PPM	1PPM	PID	3 years
Fluorine	F2	0-1PPM	0.001PPM	Infrared	3 years
Nitrogen	N2	0-100%7OL	0.1%VOL	Electrochemistry	3 years
Hydrogen fluoride	HF	0-10PPM	0.01PPM	Electrochemistry	3 years
Hydrogen chloride	HCL	0-50PPM	0.01PPM	Electrochemistry	3 years
Phosphine	PH3	0-50PPM	0.01PPM	Electrochemistry	5 years
Hydrogen cyanide	HCN	0-50PPM	0.01PPM	Electrochemistry	5 years
Hydrogen selenide	SEH2	0-5PPM	0.001PPM	Electrochemistry	5 years
Sulfur hexafluoride	SF6	0-1000PPM	1PPM	Infrared …Semiconductor	3 years
Silane	SIH4	0-100PPM	0.1PPM	Electrochemistry	3 years
Freon	FREON	0-2000PPM	1PPM	Optical	3 years
Methyl mercaptan	CH4S	0-100PPM	0.1PPM	Optical	3 years
Particles	PM2.5/PM10	0-500ug/m³	0.1  ug/m³	PID	3 years
Dust	PM2.5/PM10	0-30mg/m³	0.1  mg/m³	Optical	3 years
Dichloromethane	CH2CL2	0-500PPM	0.1PPM	PID	3 years
Chloroform	CHCL3	0-50PPM	0.1PPM	Optical waveguide	3 years
Toluene diisocyanate	TDI	0-20PPM	0.001PPM	PID	3 years
Hydrazine	N2H4	0-1PPM	0.01PPM	Electrochemistry	5 years and above
Bromine	BR2	0-10PPM	0.1PPM	Electrochemistry	3 years
Diborane	B2H6	0-10PPM	0.0100M	Electrochemistry	3 years
Formic acid	HCOOH	0-100PPM	0.1PPM	MOS	3 years
Odor	OU	0-1000U	0.10U	MOS	3 years

Application of Gas Sensor Modules

1. Industrial safety monitoring‌:
In industrial fields such as petroleum, chemical industry, coal mining, etc., gas sensor modules can be used to monitor the concentration of dangerous gases such as combustible gases, toxic and harmful gases. Timely discover potential safety hazards and ensure the safety of personnel and equipment.

2. Environmental monitoring‌:
In the field of environmental monitoring, gas sensor modules can be used to monitor the concentration of pollutants in the atmosphere. Such as PM2.5, sulfur dioxide, nitrogen oxides, etc. Provide scientific basis for environmental protection and governance.

3. Smart home and Internet of Things‌:
In the field of smart home and Internet of Things, gas sensor modules can be used to monitor indoor air quality. Such as the concentration of harmful gases such as formaldehyde and TVOC. Provide users with a healthy and comfortable living environment.

4. Agriculture and food processing‌:
In the field of agriculture and food processing, gas sensor modules can be used to monitor the changes in gas composition of agricultural products and foods during storage and processing. Such as oxygen, carbon dioxide, etc., to ensure product quality and safety.

Gas Sensor Module vs Traditional Gas Sensor

What is a gas sensor module? What is the difference between it and a traditional gas sensor?

A gas sensor is a sensor device that detects the presence of a specific gas within a certain range or continuously measures the gas composition. Using gas sensors to monitor pollution in industrial and living environments is a very traditional and common monitoring method.

A gas sensor module is a sensor that has been redeveloped and has a signal output. It can also be simply understood as an “upgraded version of a gas sensor”. Sino-Inst will explain in detail what the difference is between a gas sensor module and a traditional sensor.

Gas sensor module

A gas sensor module is a sensor that has been redeveloped and has a signal output. It can directly output voltage signals such as 0.4-2V, 0-1.6V, 0-4V, and 0-5V. Serial port signals are also reserved.

It is the smallest and most powerful product on the market. Due to its excellent performance and reliability, it is widely used in scientific research, gas monitoring and other fields.

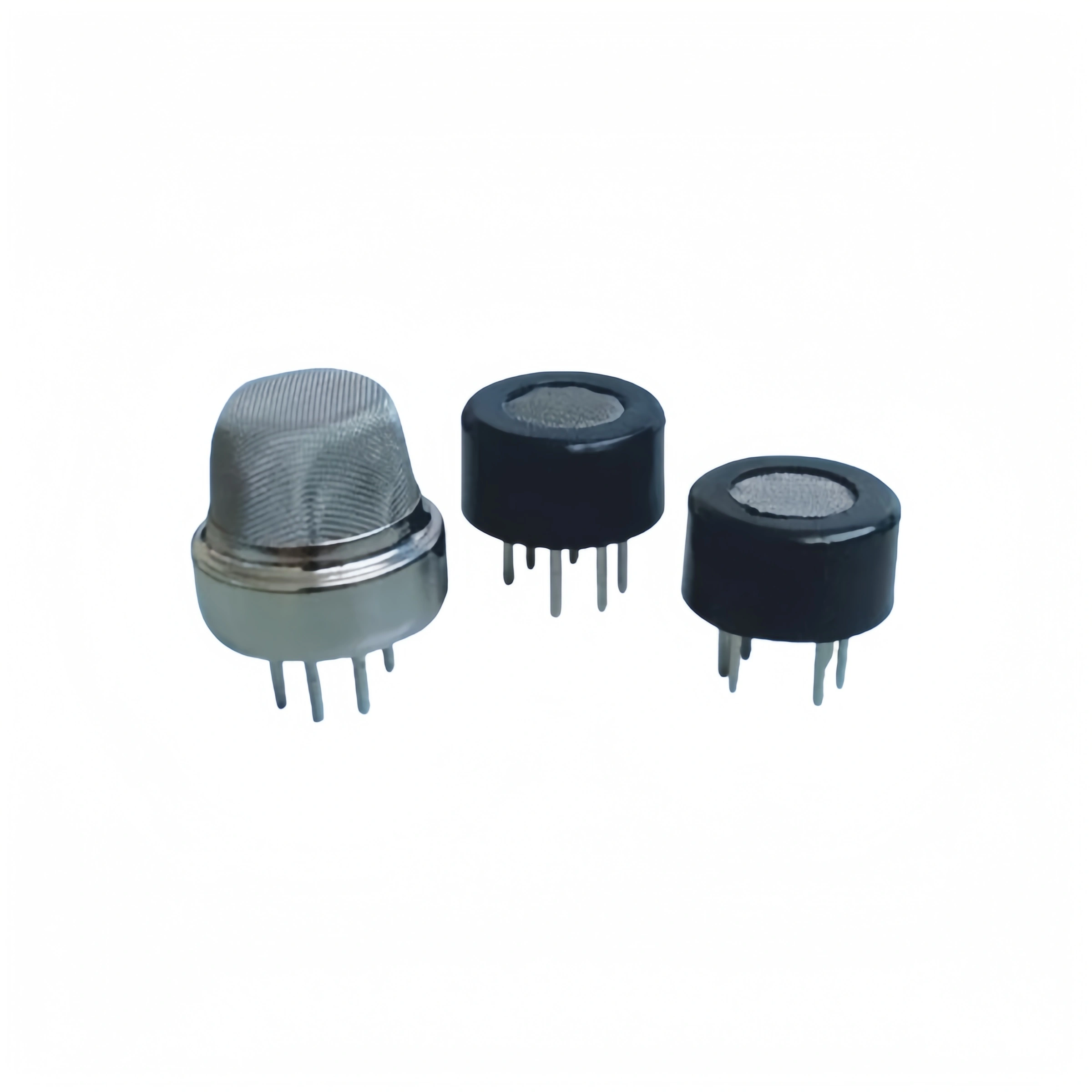

Traditional gas sensor

The traditional gas sensor is a converter that converts the volume fraction of a certain gas into a corresponding electrical signal. The function is relatively simple and cannot be used in some fields with high-precision algorithms.

Its pins are generally divided into 3 pins and 2 pins. The 3 pin is the most commonly used.

Sino-Inst’s 800 series gas sensor module is a standardized, modular, and intelligent gas detection product. It is mainly designed to solve the problems of a wide variety of gas detection, incompatibility of gas sensors of different brands, complex production calibration, and limited replacement of core components.

With our 800 series gas sensor module, you only need to connect once in the early stage to quickly respond to customers’ detection needs for different gases. With dual outputs of analog voltage and digital signals, customers can collect data directly by powering. It is ready to use, without secondary development or calibration with standard gas. It can greatly reduce the company’s R&D and time costs, and quickly improve the detection accuracy and stability to a first-class level.

If you need to customize a gas sensor module, please feel free to contact our sales engineer!
